For IPC laboratories and online monitoring at the tablet press

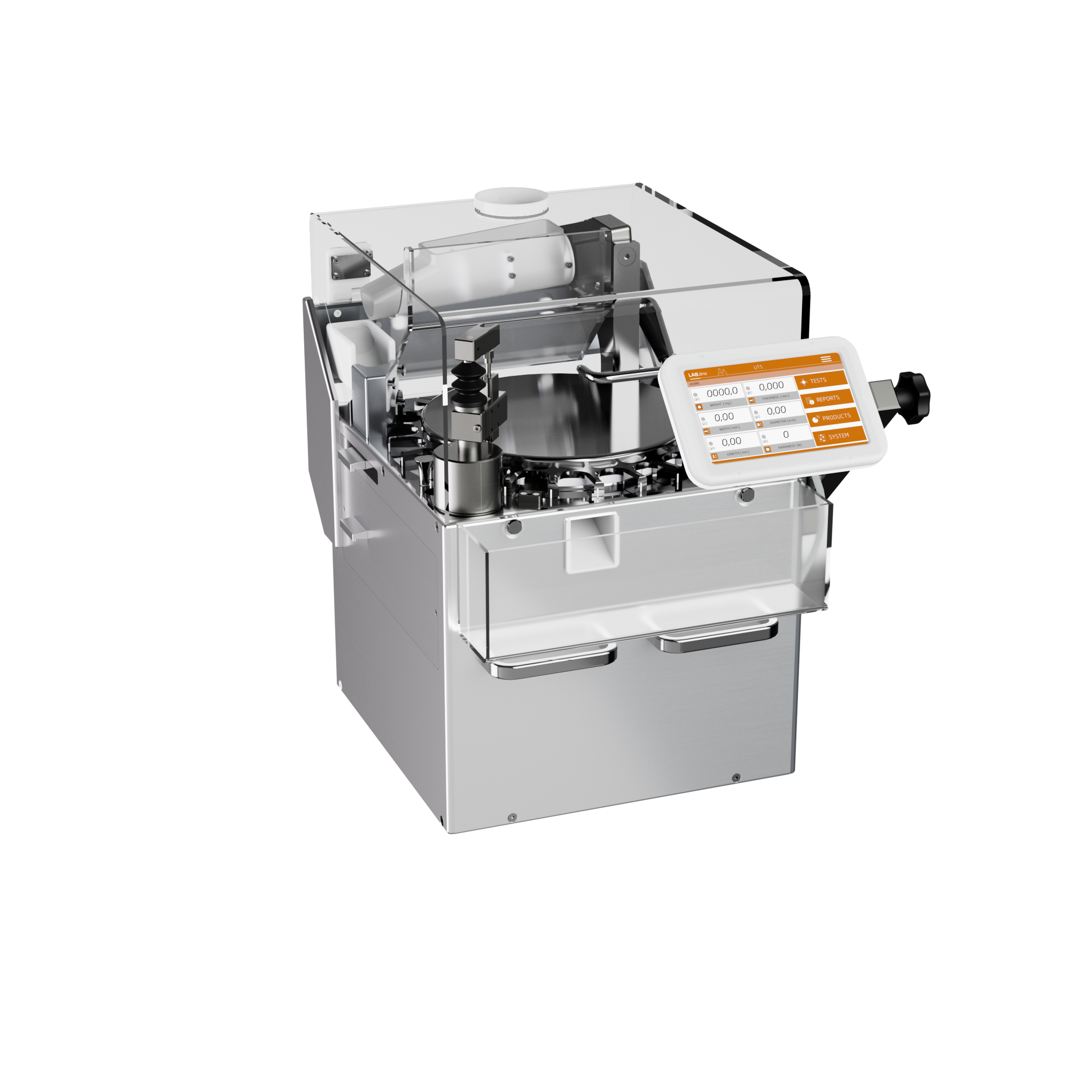

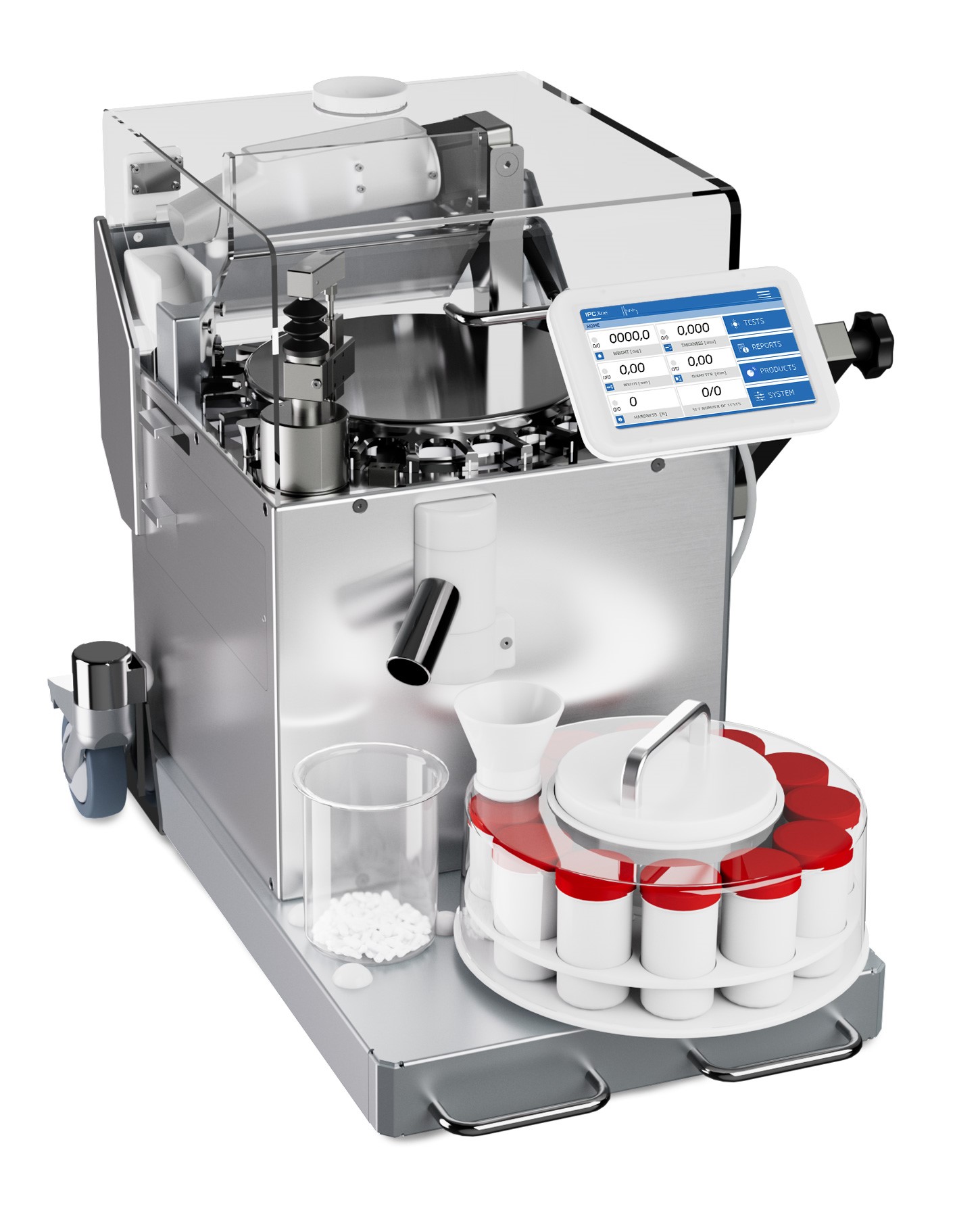

UTS 4.3

The UTS 4.3 is a universal and fully automatic tablet testing system
based on the long-proven UTS 4.1 – this was developed for
industrial use and can be found in production worldwide. The UTS
4.3 as a LAB version is now equipped with the database-driven,
intuitive all-in-one touch software and no longer requires
additional software solutions for most areas of application.

Functionality

The UTS-Series splits into various models, all tablet tester models are testing the main physical parameters of tablets:

Weight
Thickness
Hardness (breaking force)
Diameter / Length
Width (optional)

With the Ph21 software the system becomes 21 CFR Part 11 compliant.

With UTS 4.3 – as with the proven UTS 4.1 in the IPC range – you can
test round, oval, square and rectangular tablets as well as
numerous special shapes. For difficult oblong tablets, the globally
used Oblong Centering System (OZB) can also be integrated.

Language packages

The following language packages are available now: Spanish, Dutch, Italian, French, Brazilian, Portuguese, Portuguese, Polish, English, German

Three-stage dedusting

In the patented feeder chute which separates the tablets, tablets are also dedusted before testing. After the separation the tablets are fed one by one on a slide into the starwheel (star-shaped transfer element). Each tablet is detected by a dust-insensitive sensor.

Two additional tablet dedusting sections after the separation, keep the tablet testing stations clean and guarantee reliable test results.

Remaining dust and debris are collected in a special dust container under the separation slide.

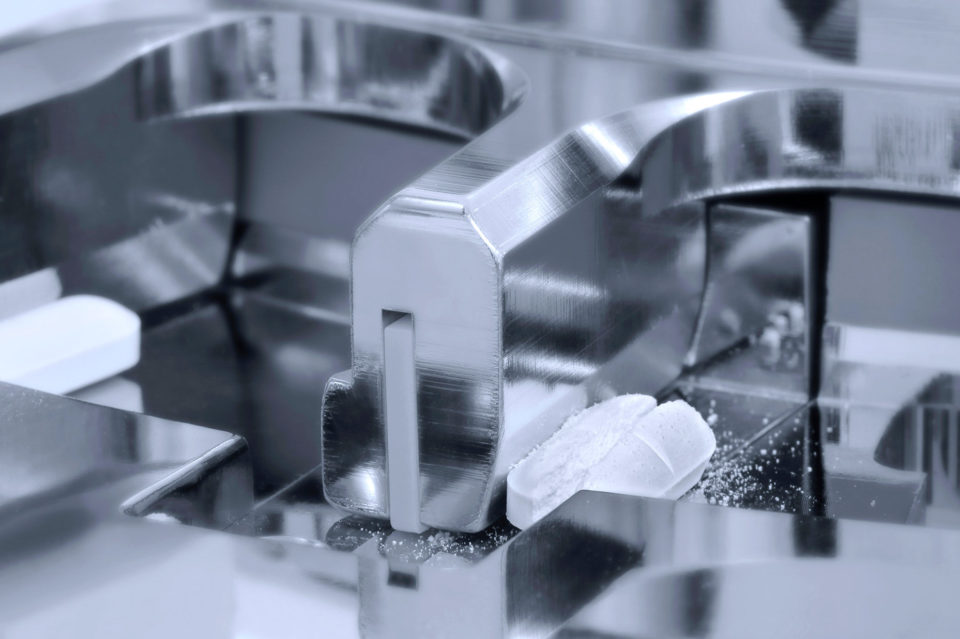

Self cleaning feature

To keep the track where tablets are moved through the testing stations clean, inside the starwheel are 24 PTFE scrapers shuffling dust and tablet crumbs to the waste bin.

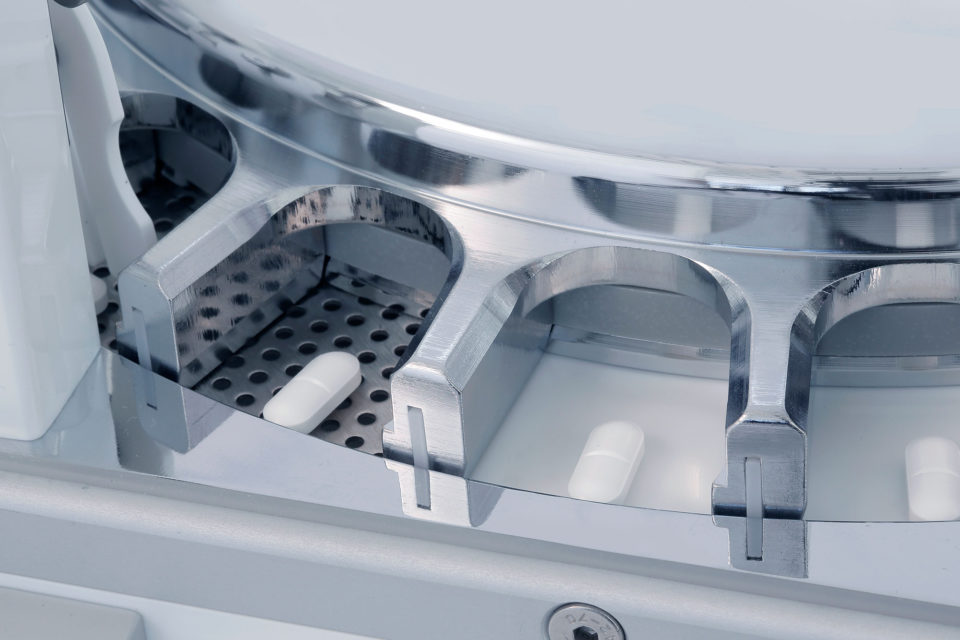

Positioning

The smart design of the transport starwheel alignes, centers and transports the tablets through the different measuring stations: weight, thickness, diameter and hardness.

Handling of unusual tablet shapes

The transportation starwheel which moves tablets through the different testing station is available with many different executions and can be customized.

Customized solutions

We provide special solutions for specific customer requirements. Here are a few examples of customized Kraemer UTS models:

S7 – With special feeder for tablets up to Ø 25 mm
S8 – For tablets up to Ø 50 mm
S9 – For mini-tablets
S16 – With conveyor belt feeder and 5-way sorting diverter
S17 – With 2-way sorting diverter
S20-FC – Dust-proof with single tablet feeder

Choose your favourite options on the bottom of this page!
